All I want for Xmas is Chicory

INTRO

In a lot of cultures, during Christmas time, Santa would distribute toys and presents to the good kids around. If you are reading Java Advent Of Code, that means that you care about Java and I’m sure you are a good one who deserves a present!

Let me be your Santa today and I’ll show you a new shiny present:

From the outside, the box looks small. We are not going to find any full-fledged framework to write Enterprise applications.

On the front, there are pictures of mythical integrations and fancy plugin systems, but a note on the back catches the attention: “requires assembly”. Gotcha, this is the kind of educational toy that requires us to read the guide to make some sense out of the pieces.

Are you ready for the unboxing?

Here you have a fancy early version of a Wasm interpreter called Chicory!

Whaaaat????

What does that even mean?

Don’t get upset, the instructions are detailed, let’s go through them together.

WebAssembly (Wasm)

From Wiki we can read:

defines a portable binary-code format and a corresponding text format for executable programs as well as software interfaces for facilitating interactions between such programs and their host environment.

Ok, I get it, it’s another bytecode format to express programs, but how and why should we use it? Is the JVM bytecode not good enough?

Wasm has some different characteristics that give it an advantage over the JVM for some use cases. Because it was born on the web, Wasm has a sandboxed memory model which prevents modules from reading memory or jumping to code outside of their own scope. And by default, Wasm will not allow you to access any system resources such as files or networks. Wasm also has no concepts of objects or heap and that means it can run low-level languages very efficiently. This makes Wasm an ideal candidate for running untrusted / third party code written in a variety of languages.

Included pieces

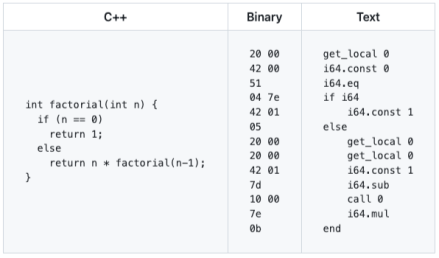

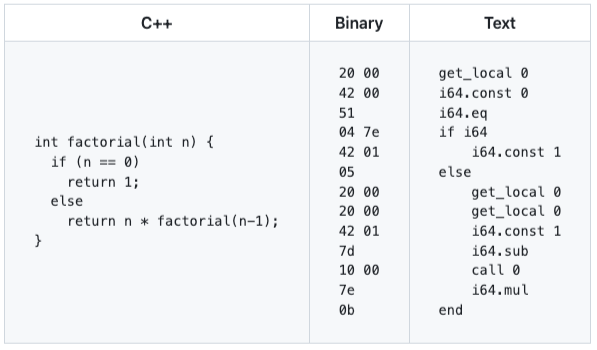

Wasm has something like an assembly language that maps directly to its instructions. You can write this by hand, but like Assembly, you typically don’t. Fortunately, we do have much better and higher level languages to solve the nitty-gritty problems of the low-level for us.

Many of the most popular languages are starting to offer the possibility of TARGETING WASM, translating your program written in a high-level programming language into a series of Wasm instructions.

Often, the instructions for educational games are informative, but you don’t truly understand it until you play it yourself. Let’s connect the first pieces and compile a simple program to Wasm.

The program:

const VOWELS: &[char] = &['a', 'A', 'e', 'E', 'i', 'I', 'o', 'O', 'u', 'U'];

#[no_mangle]
pub extern fn count_vowels() -> i32 {
    let s = String::from("Hello World!");
    let mut count: i32 = 0;
    for ch in s.chars() {
        if VOWELS.contains(&ch) {
            count += 1;
        }
    }
    count
}

Compile with:

rustc count_vowels.rs --target=wasm32-unknown-unknown --crate-type=cdylib -C opt-level=0 -C debuginfo=0 -o count_vowels.wasm

For simplicity, you can use the provided Dockerfile.

Now that we have a .wasm file to try things out we need “something” to run the instructions.

Without getting too fancy and cutting nuances off we have two main options:

• Another compiler: This should be able to take the wasm format and translate it to machine code that a computer can run (e.g. wasm2c)

• An interpreter: This will process the content of the wasm file directly executing the instructions.

Chicory, as of today, is a Pure Java (no dependencies other than the Java standard library) interpreter and there are tradeoffs to consider here:

• Compiler:
  • PRO: fast execution
  • CONS: needs a “developer” toolchain to be executed, more opportunity for security vulnerabilities
• Interpreter:
  • PRO: self-contained and easily portable, less opportunity for security vulnerabilities
  • CONS: can be slow for heavy compute programs

More specifically a compiler can apply optimizations and transformations before emitting the target output, usually making the resulting binary better in terms of speed and efficiency.

An interpreter instead can directly run Wasm code without the need for additional toolchains, this makes it a natural fit for running arbitrary, user-defined functions unknown at application compile time.

Chicory is doing a direct mapping from the Wasm format to the JVM’s native primitives, which doesn’t need any advanced techniques like introspection or reflection, thus making it a great candidate for embedding in GraalVM native-image binaries.

Using our experience and test suite of the interpreter engine, we’re also working on a compiler from Wasm to JVM Bytecode. As demonstrated in the Go ecosystem with Wazero both an interpreter and a compiler are extremely useful for different use cases.

Now, let’s stop looking at the separately sold additional pieces of our present and keep reading the instructions 🙂

Usage instructions

When we start thinking about the possible use cases for a Wasm interpreter, the sky’s the limit. But, let’s look closer at the examples to see how we can employ such technology.

• Enable polyglot plugin systems
  Kroxylicious is a pluggable proxy for Kafka, it enables you to write “filters” in Java to perform various kinds of operations, for example, data manipulation of the messages. In this example you can see how to plug in the Chicory interpreter and automagically offer support for plugins written in other languages. Extism is another great example of an ultra-portable plug-in system.
• Reuse of libraries from different ecosystems
  It’s not always desirable to rewrite a library in multiple different languages, for the sake of speed, correctness and maintenance.
• Dynamic functions execution
  GraalVM native-image makes it viable for Java programs to be compiled into static binaries. The downside is that the usage of reflection becomes an obstacle and should be configured Ahead Of Time. This takes out a good slice of “dynamicity”. In this example we are including Chicory in a statically built CLI binary that can execute user-provided code provided via the command line.

So, the pictures are nice, now let’s try to write and run an example on our own.

Now we are going to write a Quarkus Web Server from scratch that will expose two endpoints:

• Load code dynamically
• Execute the loaded code on the user input

You can think of it like a mini Java-powered “functions as a service” platform.  And with native image, we will be compiling it to native binaries so it should be fast.

Step-by-step

• Install the Quarkus CLI and create a standard Quarkus application:

  quarkus create

  This command will automatically scaffold a full-blown server-side application in the folder code-with-quarkus , so open it with your favorite IDE/Editor and we can start to play!

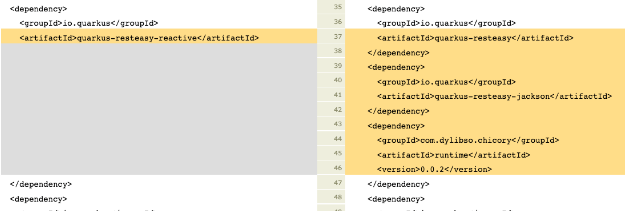

• Fix the dependencies in pom.xml as shown in this diff:

• • use plain RestEasy (as opposed to the default reactive version)

• • add the dependency on Jackson to handle Json objects from your API
  • add the dependency on the Chicory runtime! ( as described in the project Readme )
• Remove the default content in src/main/java/org/acme and scaffold your implementation with the content available here.In the code we are defining a stateful “Service” shared between 2 “Resource”s depending on it:
  • WasmResource defines one endpoint able to receive a wasm file in binary format
  • ComputeResource is the endpoint that will provide the final “functionality” executing the last wasm function uploaded against the user input
  • WasmService example API exposes two methods to perform the desired operations

@ApplicationScoped
public class WasmService {
  private Module module;

  public void setModule(InputStream module) {
    ???
  }
  public int compute(int content) {
    ???
  }
}

•  Fill the empty WasmService implementation to finally perform the desired actions using Chicory’s primitives:

@ApplicationScoped
public class WasmService {
  private Module module;

  public void setModule(InputStream module) {
  this.module = Module.build(module);
  }

  public int compute(int content) {
    if (this.module == null) {
      throw new IllegalArgumentException("The WASM program have not been set, please do it!");
    }

    var instance = module.instantiate();
    var exportedFunction = instance.getExport("exported_function");
    var result = exportedFunction.apply(Value.i32(content));

    return result[0].asInt();
  }
}

mvn quarkus:dev

curl -sL https://raw.githubusercontent.com/andreaTP/first-chicory-blog/main/dynamic-loading/example.wasm  --output example.wasm

curl -H 'Content-Type: application/octet-stream' -X POST --data-binary @example.wasm http://localhost:8080/wasm

curl -v 'http://localhost:8080/compute' -H 'Content-Type: application/json' --data-raw '41'

{"value":42}

## Stage 1 : build
FROM quay.io/quarkus/ubi-quarkus-graalvmce-builder-image:jdk-21 AS build
USER root
RUN microdnf install make gcc
RUN mkdir /musl && \
   curl -L -o musl.tar.gz https://more.musl.cc/11.2.1/x86_64-linux-musl/x86_64-linux-musl-native.tgz && \
   tar -xvzf musl.tar.gz -C /musl --strip-components 1 && \
   curl -L -o zlib.tar.gz https://www.zlib.net/zlib-1.3.tar.gz && \
   mkdir zlib && tar -xvzf zlib.tar.gz -C zlib --strip-components 1 && \
   cd zlib && ./configure --static --prefix=/musl && \
   make && make install && \
   cd .. && rm -rf zlib && rm -f zlib.tar.gz && rm -f musl.tar.gz
ENV PATH="/musl/bin:${PATH}"
USER quarkus
WORKDIR /code
COPY . .
RUN ./mvnw package -Dnative -DskipTests -Dquarkus.native.additional-build-args="--static","--libc=musl"

## Stage 2 : create the final image
FROM scratch
COPY --from=build /code/target/*-runner /application
EXPOSE 8080
ENTRYPOINT [ "/application" ]

docker build -f src/main/docker/Dockerfile.native-scratch -t chicory/getting-started .

docker run -i --rm -p 8080:8080 chicory/getting-started
